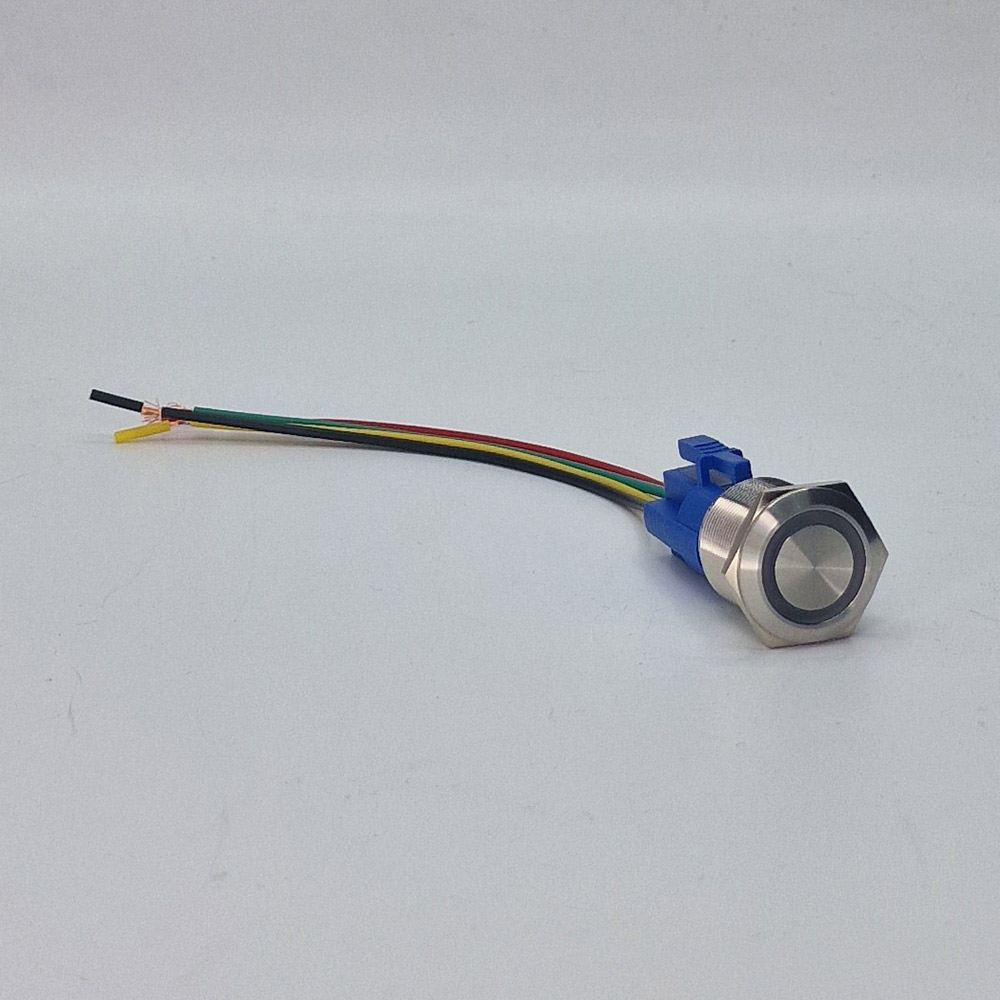

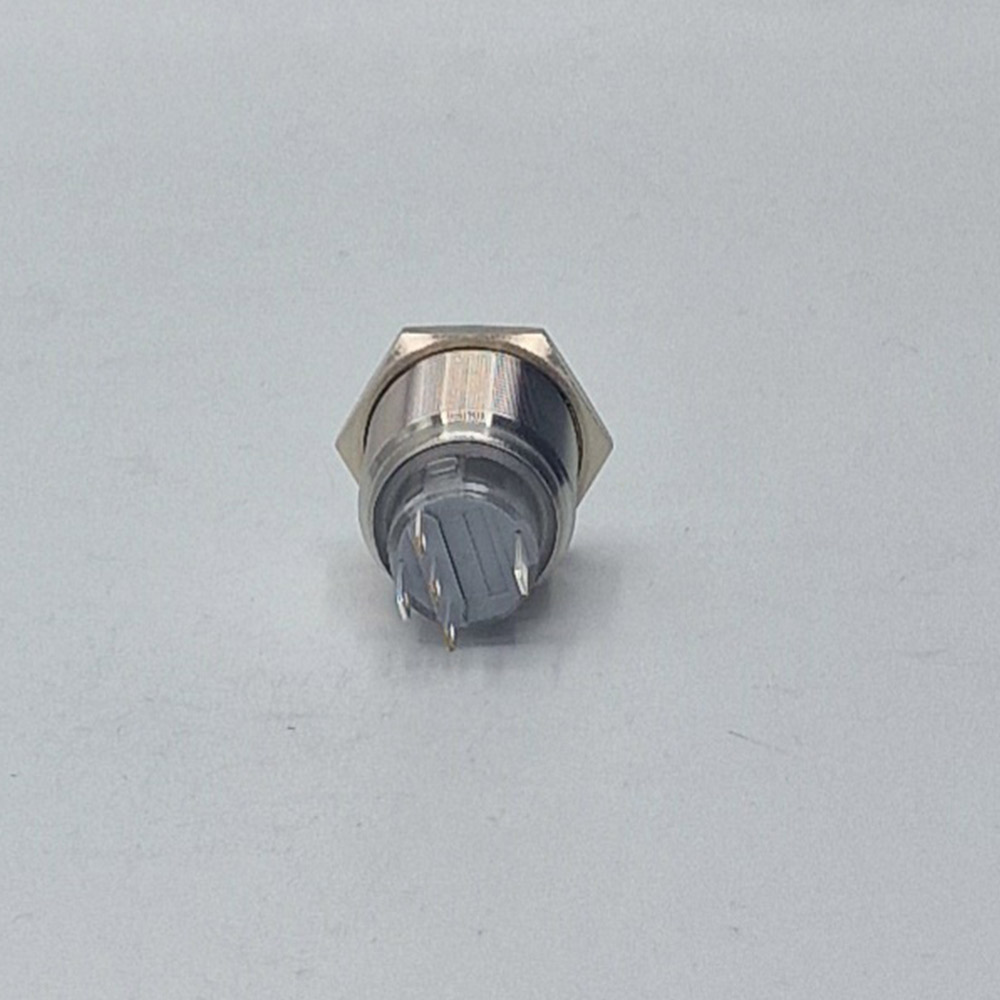

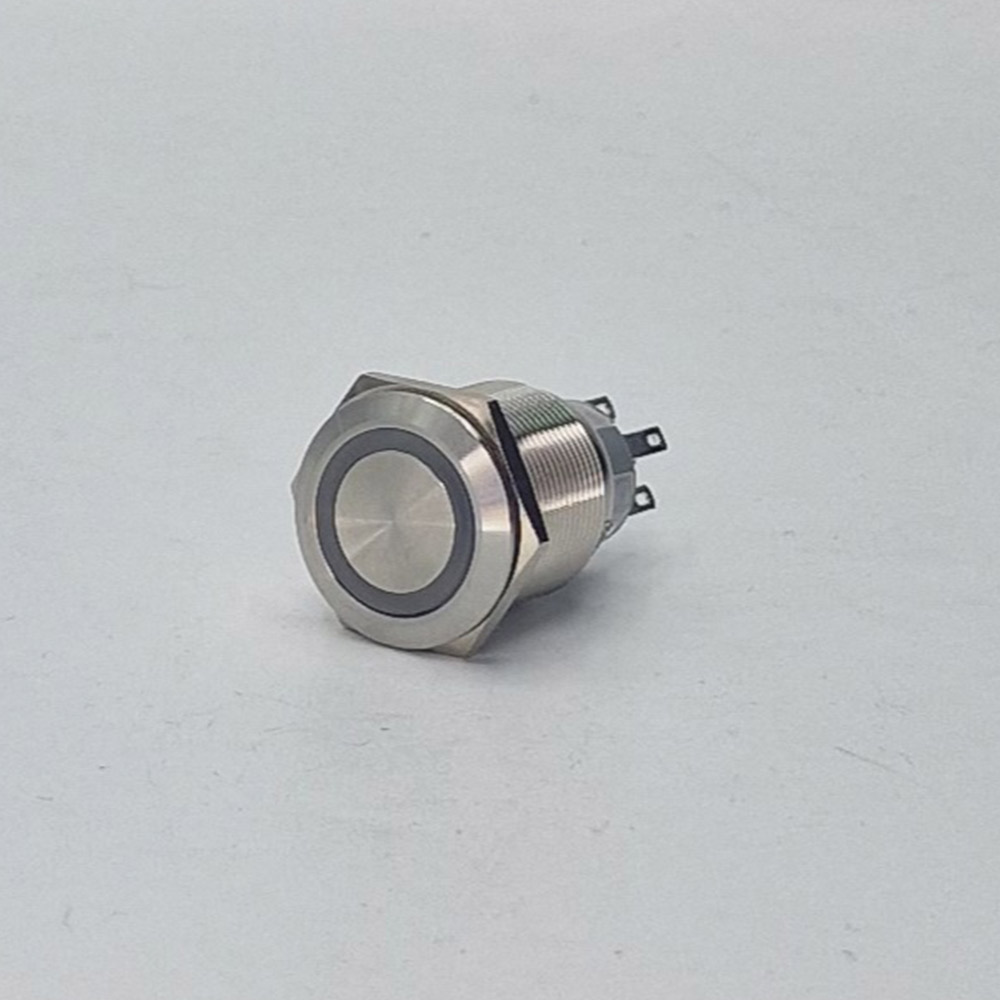

VANDAL-PROOF BUTTON SWITCH WITH CONNECTORS, 5A 250V AC, IP67, STAINLESS STEEL
Switch 5A, 250V AC(CE-VDE)
Diameter 22mm
Typology: Momentaneo
Bright with ring
Degree of protection IP67
Body and button: stainless steel
Contacts: Silver alloy
Sold with connector AV22-T1-4C
Chiama per assistenza 039 6250932Data prevista per la spedizione: 24-10-2024
€15.06 VAT excluded
Quantità disponibile: 10
- Description
- specifiche
Description
The vandal-proof buttons in stainless steel (stainless steel) are suitable for outdoor applications, public spaces and industrial environments such as change machines, control panels, vending machines, kiosks, ticket machines and parking lots.
The structure is sturdy and made of stainless steel with a “ring” type luminous crown available in different colors and tensions. The IP65 degree of protection guarantees complete protection from dust and low pressure water jets.
The momentary push button switch makes electrical contact only while held in place, once released the switch returns to the off position.
Features:
– Resistant to Vandalism.
– Assembly in 19mm templates.
– fixing with solder terminals (2.8×0.5mm)
– 6V LED power supply
– Contacts: 1NO + 1NC
– Button body in stainless steel
– silver alloy contacts
– Base: PBT
