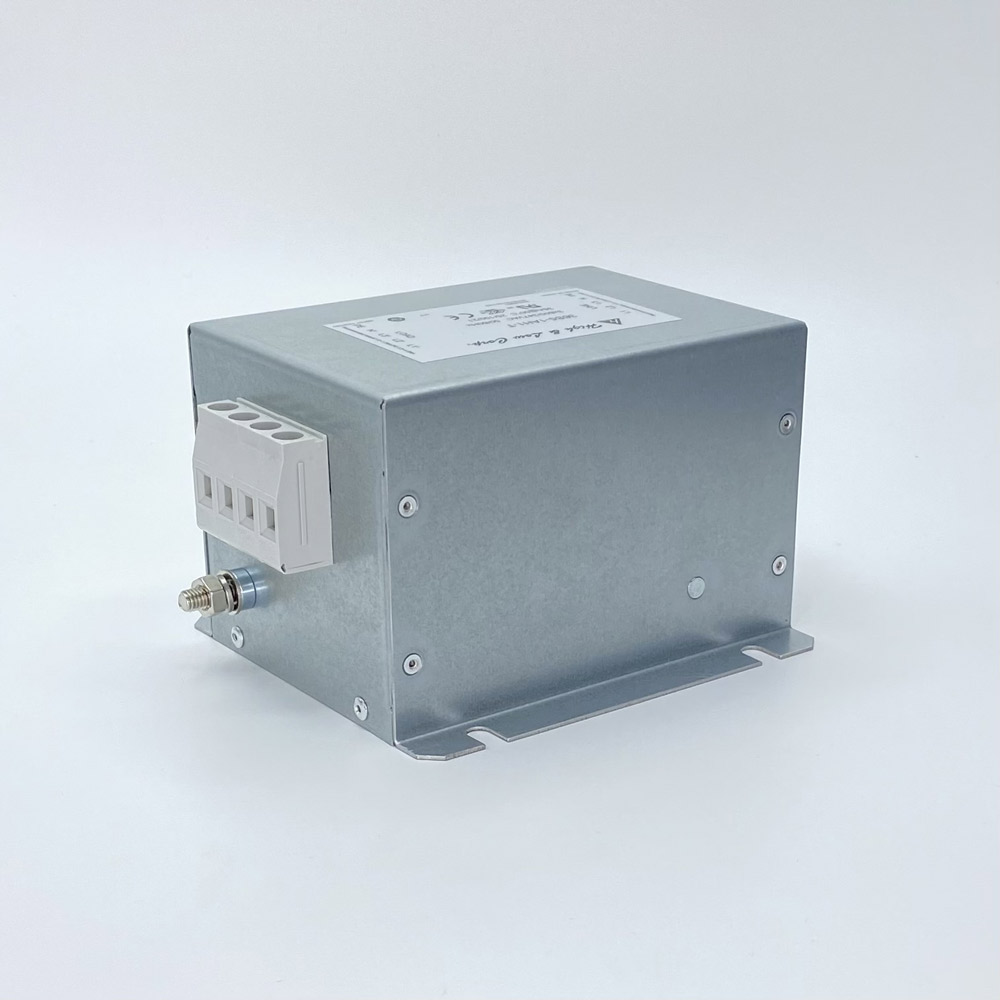

36A, 600V AC, THREE PHASE + NEUTRAL, EMI BOX FILTER
36A (UL-ENEC)
Voltage 600/347V AC – 50/60Hz
Climatic category: HPF 25/100/21
Maximum leakage current:
@480VAC 50/60Hz: 0.6mA
Hi-pot L-L: 2250VDC
Hi-pot L-N: 1100VDC
Hi-pot L-PE: 3000VDC
Data prevista per la spedizione: 02-04-2025
€152.22 VAT excluded
Quantità disponibile: 2
- Description
- specifiche
Description
The EMI filter, also called anti-interference filters, is the key element to eliminate interference from the electrical system and are available in a wide range of types that differ in electrical, mechanical and wiring diagram specifications.
Boxed filters offer high performance and high frequency solutions, they are inserted in metal cases for an optimal connection to earth. Suitable for solving more complex problems and to be included in an existing project during construction. They are distinguished between single-phase and three-phase (3pH or 3pH + N), the latter approved for nominal voltages up to 600V and suitable for machine tools, industrial automation, packaging, large uninterruptible power supplies, medical devices, etc.
Nominal Current up to 160A
Maximum voltage 600Vac
Metal case “footprint” type
Available connections: Terminal block, Screws, Wires
